Autoclave sterilizzatore estetico 8l type d with printer class b - medical
Woson is a reputable manufacturer of high-quality medical and cosmetic equipment. The brand supplies beauty salons, tattoo studios, hospitals and clinics with professional devices used in the sterilization process, thus guaranteeing the maximum level of safety and hygiene for the practitioners and their clients.
Safe sterilization of a wide range of instruments

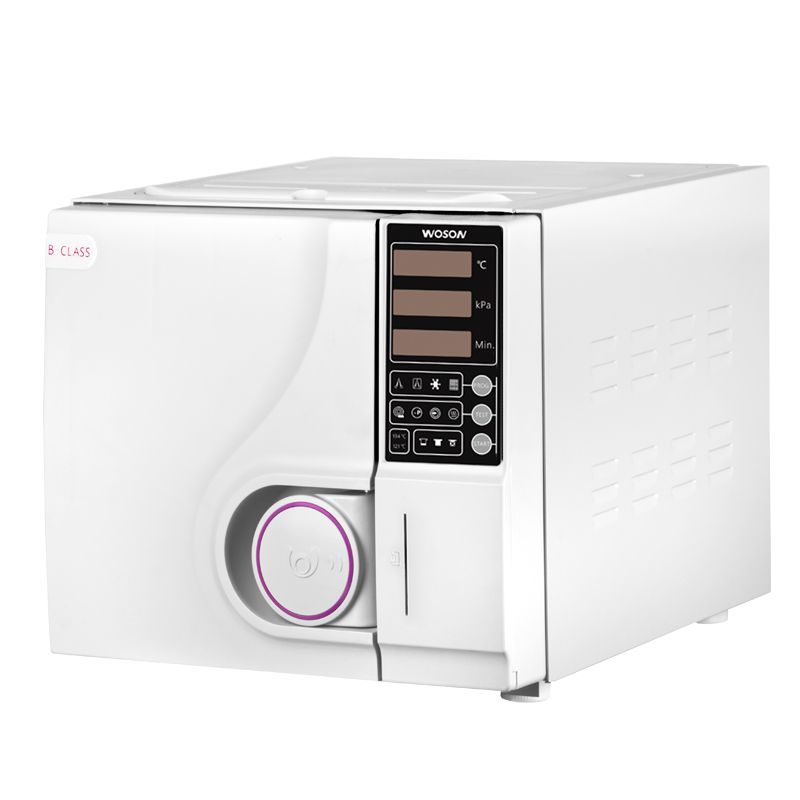

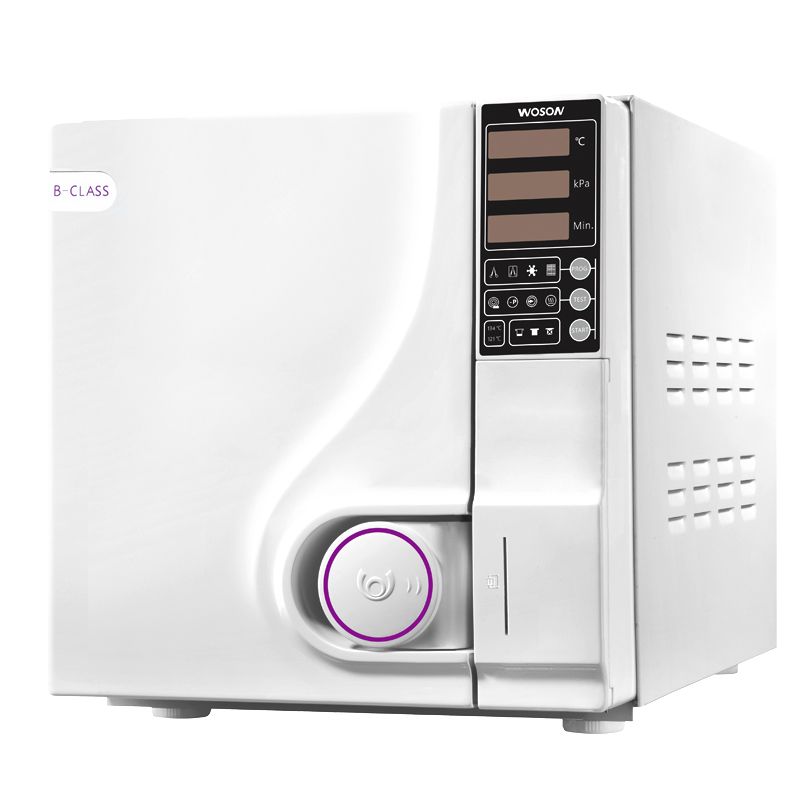

The compact autoclave Woson New Tanco 8 L is an irreplaceable piece of equipment that will prove useful in every beauty salon, nail styling salon and other places where it is important to maintain the sterility of the tools used during treatments. Sterilization with an autoclave of the highest medical class B ensures full effectiveness and safety of the process, thus facilitating the maintenance of high hygiene standards in the salon. The equipment is designed to sterilize both medical and non-medical instruments, wrapped and unpackaged, uniform, indented type A and porous items. The device may only be operated by qualified personnel who have the knowledge and appropriate training to operate this type of equipment.
Improvements for increased functionality

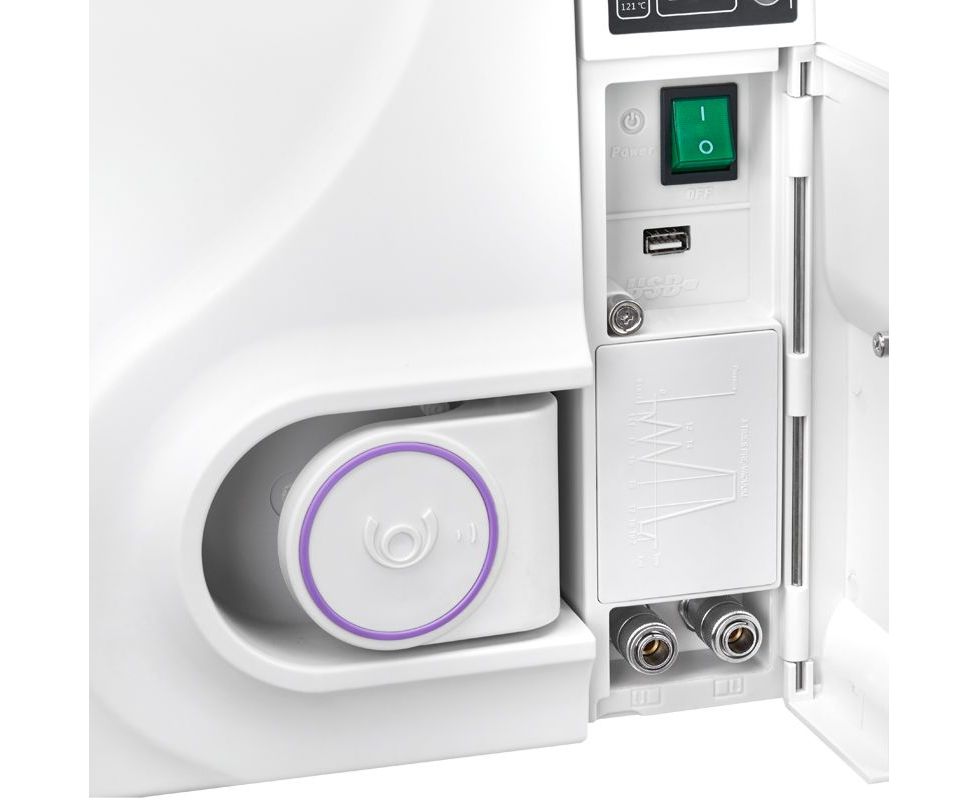

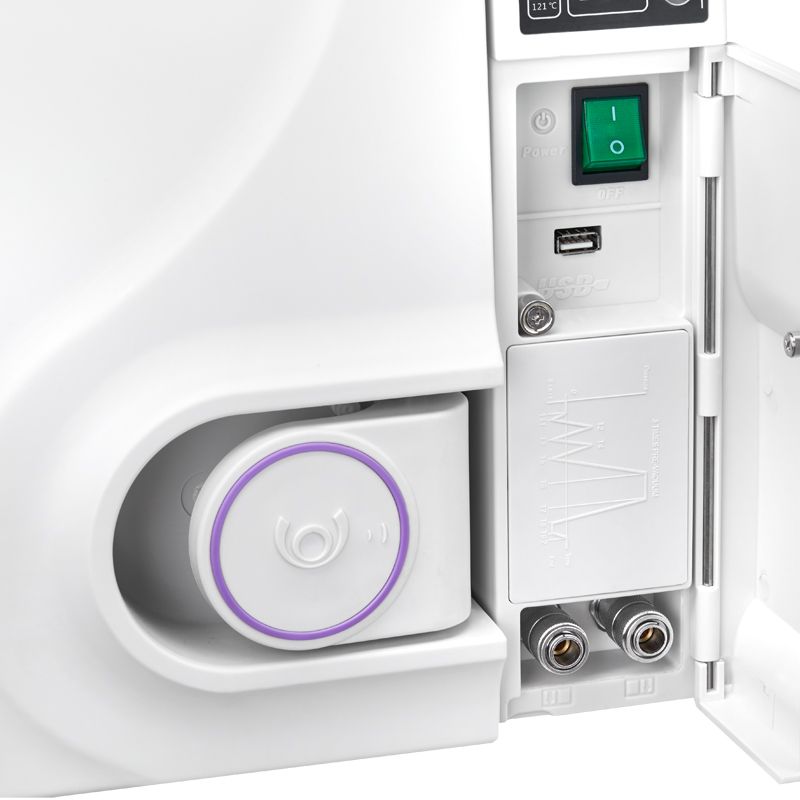

The device is equipped with a control panel with a LED display, which allows the selection of appropriate programs or parameters and keep track of the process. The built-in thermal printer allows confirmation of the sterilisation process to be printed out with information such as: date and time of the cycle, temperature changes, pressure. In addition, there is a connector on the back of the unit that also allows a dedicated printer to be plugged in if required, and the USB input allows sterilisation results to also be saved digitally on the included memory stick. Built-in tanks for distilled and used water significantly improve work. The device has a distilled water quality control function. The self-diagnosis system informs you when an error occurs by displaying appropriate messages, such as about a door not being closed properly or the need to empty the tank or replace the water, which reduces the risk of equipment damage.
Available sterilisation, testing and cleaning programs
The autoclave is programmed with: 4 sterilization programs, 2 test programs – allowing three tests to be performed: Vacuum Test, B&D Test and Helix test Helix Test – a program for regular maintenance and cleaning of pipes (Automatic Pipe Cleaning) and a drying program that meets the drying requirements of a higher standard (Drying Function). This allows the parameters to be selected to suit individual needs and the prepared load. It is also possible to set and save your own sterilization parameters through the personalized mode (CUSTOM).
STERILIZATION PROGRAMS
| Sterilization program | Type of load | Temperature | Pressure | Multiplicity of vacuum generation | Cycle time |
| “UNPACKED” | Program designed to sterilize unpackaged items | 134°C | 210 kPa | 1-time | sterilization time: 4 minutes; drying time: 9 minutes |
| “PACKED” | Program intended for sterilization of wrapped items, tips | 134°C | 210 kPa | 3-times | sterilization time: 5 minutes; drying time: 9 minutes |
| “PRION” | Program designed to inactivate prions, bacteria and viruses, etc. | 134°C | 210 kPa | 3-times | sterilization time: 18 minutes; drying time: 9 minutes |
| “POROUS” | Program designed to sterilize items made of cotton and similar articles | 121°C | 110 kPa | 3-times | sterilization time: 20 minutes; drying time: 18 minutes |
Specification:
| Class B medical | The most advanced sterilizers, allowing the most effective sterilization of wrapped and unpackaged items, regardless of the type of instruments. They are distinguished by the generation of a fractionated pre-vacuum. |
| Regulatory requirements | The device is CE 0197 certified, meeting the requirements of Directive 93/42/EEC on medical devices and Directive 97/23/EC. It also complies with EN 61010-1 standards; EN 61010-2-040; EN 13060; EN 61326-1. The manufacturer has EN ISO 9001 and EN ISO 13485 certificates. |

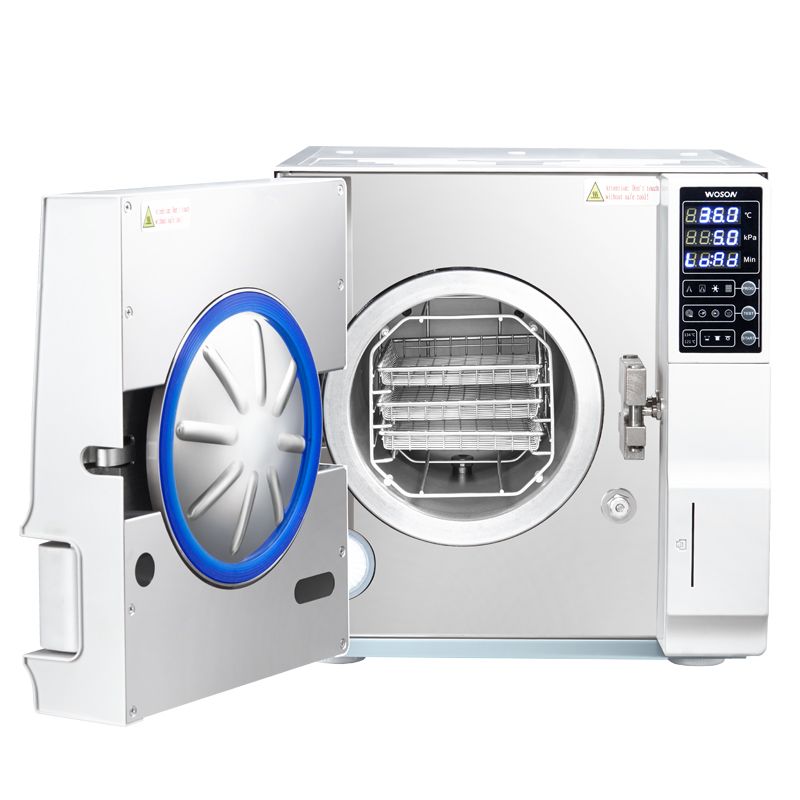

| Capacity of 8 litres | Perfect for beauty salons or clinics. Accommodates a basket with 3 trays on which wrapped and unpackaged tools can be placed. |
| Built-in printer | Thermal paper is used, avoiding the hassle of replacing ink. |
| Sterilization of wrapped and unpackaged instruments | For both sterilization methods, the process is highly effective. |

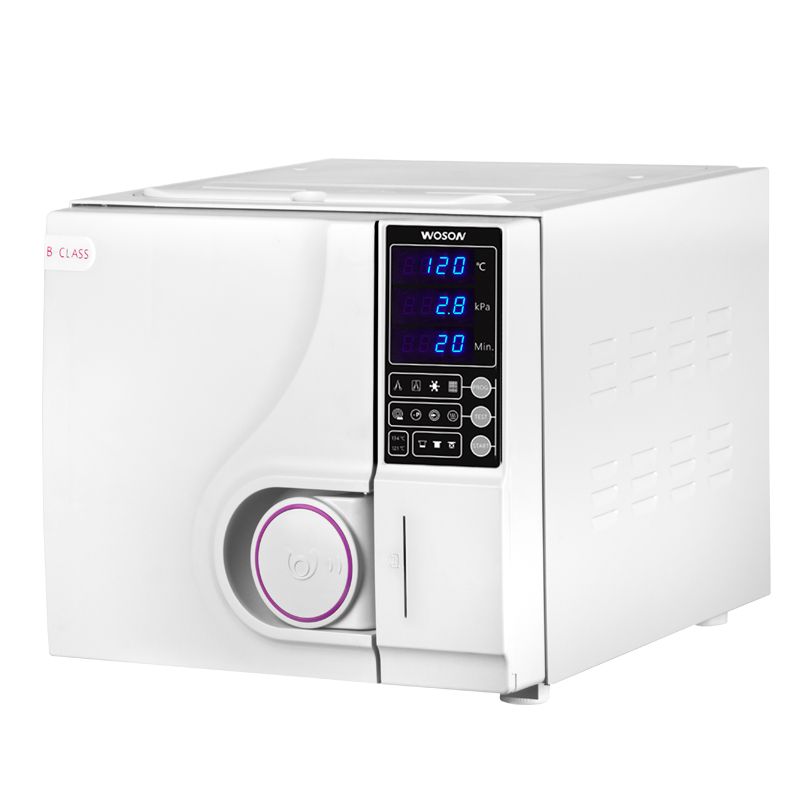

| Control panel with LED display | Allows you to easily select the appropriate program and set parameters. During the process, it displays the temperature, pressure and time. |
| 8 automatic programs | 4 sterilization programs, 2 test programs, 1 pipes cleaning program, 1 drying program. |

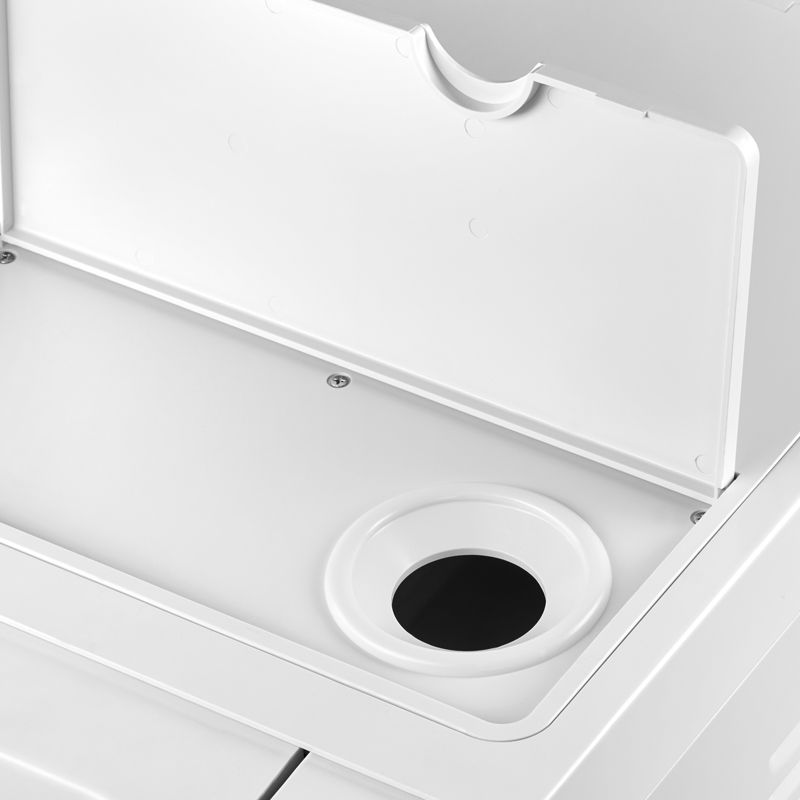

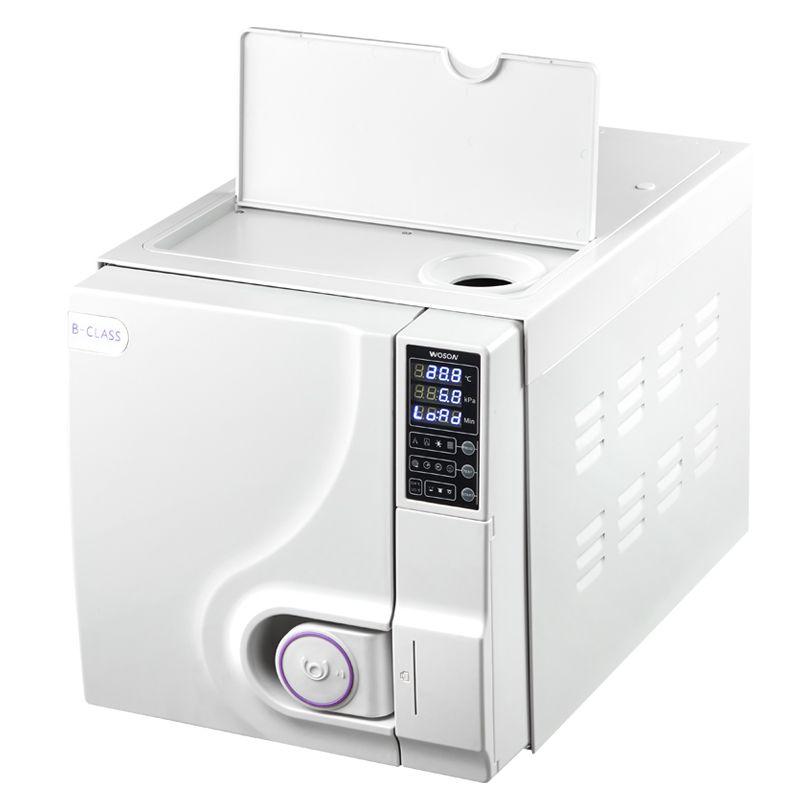

| Built-in distilled and used water tanks | The tank for clean water is designed for distilled or deionised water, used for sterilisation. The presence of a tank for used water means that there is no need for an additional external container. |
| Self-diagnosis system | Displayed messages help to avoid damage. |
| Stainless steel chamber | The material used is intended for medical use and is durable, which proves the high-quality of the device’s workmanship. |
| Meets the sanitary and epidemiological requirements | The autoclave meets international standards. |
| Technical passport | Included in the set. |
| Warranty | 24 months. The duration of the guarantee does not depend on the number of cycles carried out. |
Technical data:
| Certificates and standards | CE 0197 (93/42/EEC, 97/23/WE), EN 61010-1; EN 61010-2-040; EN 13060; EN 61326-1. |
| Power | 1600 W |
| Rated voltage | 220VAC ~ 240VAC, 50Hz~60 Hz |
| Maximum operating temperature | 145°C |
| Maximum operating pressure | 2,5 bar (250 kPa) |
| Minimum operating pressure | -0,9 bar (90 kPa) |
| Time adjustment | from 20 to 60 minutes for a program at 121°C or from 4 to 20 minutes for a program at 134°C |
| Drying time | 0 to 60 minutes, step length is 5 minutes |
| Vacuum multiplication | 1-fold, 3-fold or 5-fold |
| Packaging dimensions | 652 x 549 x 486 mm |
| External dimensions | 545 x 382 x 375 mm |
| Chamber material | stal nierdzewna |
| Chamber dimensions | 251 x 137 x 132 mm |
Please read the instructions carefully before use.

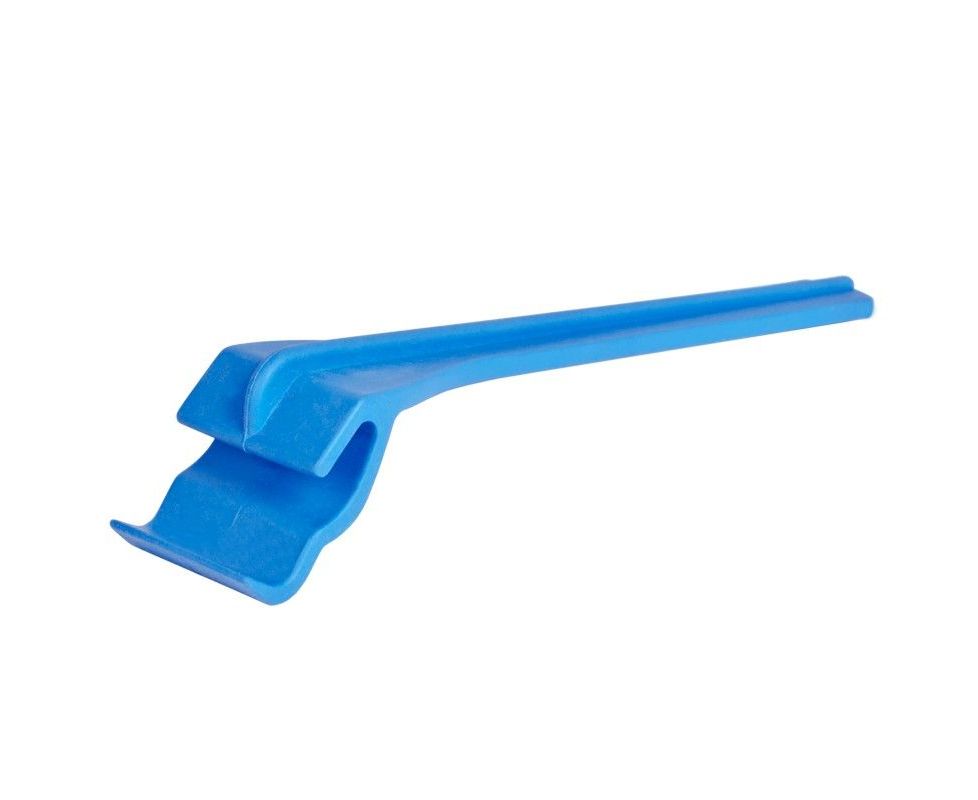

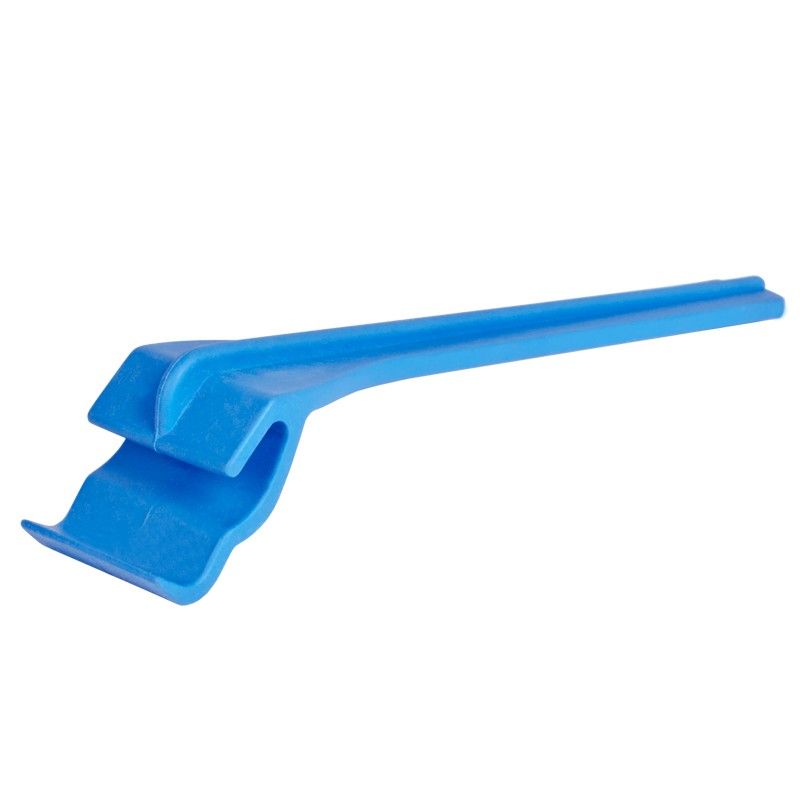

Included:autoclave, tray frame, three trays, handle (grip) for removing the tray, hose for draining used water, power cord, door seal, user manual, technical passport, pendrive.
